Special bottle blowing machine for less than 25L water bucket

   Hello,friend.We are Taizhou Huangyan Tai Xiang Plastics Machinery Co., Ltd., specializing in the production of semi-automatic,  fully  automatic  bottle  blowing  machine,  suitable  for  a  variety of material plastic, beverage bottles, mineral water bottles, cosmetics bottles, oil bottles, space cups, medicine bottles, edible oil bottles, bulk wine bottles, etc.

   Various packing containers such as water barrel, wide-mouthed bottle, plastic pop can, beverage bottle and so on. The bottle shape of the opposite sex needs to be customized for processing.

And the special high quality and low price accessories, solenoid valve, cylinder, lamp pipe, gas source treatment parts, pipe fittings, oven fittings, etc., special specifications cylinder, lamp tube can be made to sample. all kinds of bottle moulds, bottle moulds, bottle caps and so on can  be customized.  Welcome  the  new  and  old  customers'  negotiations.  We  look  forward  to  cooperating with you.

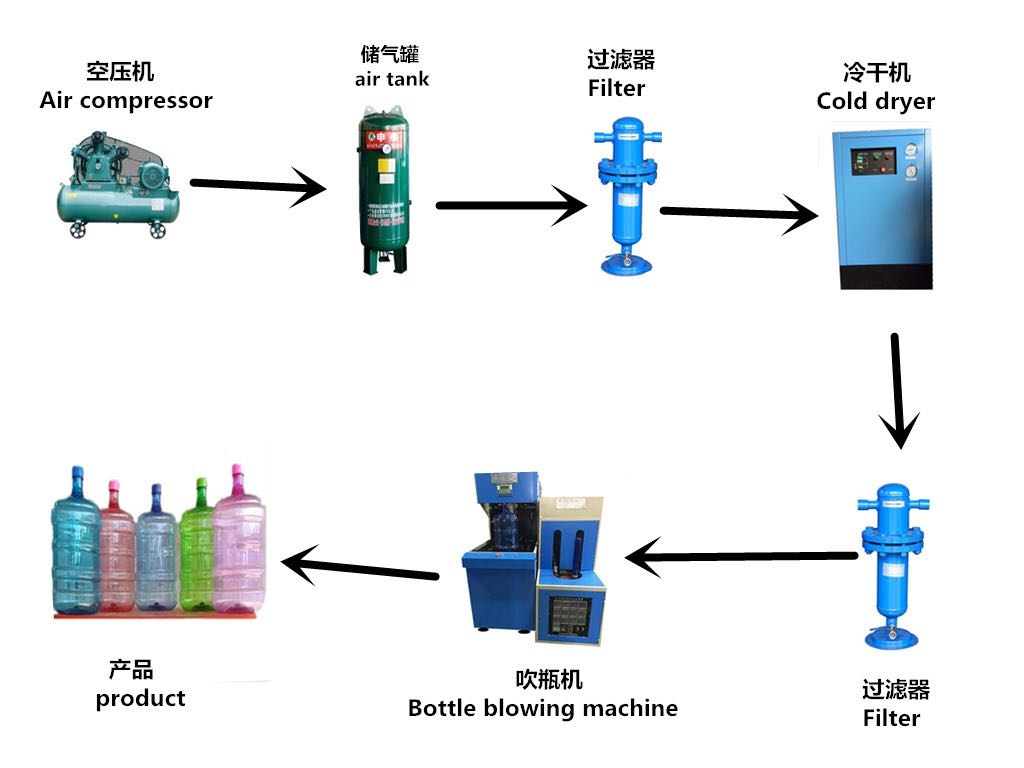

Process of blowing bottle


TX-5gallon 1 cavity technical parameters

Category

Item

Unit

TX1C 20L

Finished

product

material

/

PET

volume

L

20L

theoretical output

PCS/h

150-400

maximum height

MM

600

the largest diameter

MM

350

Template

size

the largest acreage of template

MM

430*650

maximum thickness of mold

MM

410

minimum thickness of mold

MM

250

clamping force

T

25T

mold opening stroke

MM

350


Auxiliary

equipment

air compressor

15KW

¡Ý3.0/3.0

air freeze dryer

3.0 M pa

¡Ý3.0/3.0

air precision filter

3.0 M pa

¡Ý3.0/3.0

Electric power of main engine

power

KW

25

voltage / frequency(three - phase)

V/HZ

380/50-60

working pressure

M pa

0.8-1.2

blowing pressure

M pa

¡Ü3.0

Size

 size of main engine

MM

2350*740*1880

heater size

MM

2670*660*1590

Weight

weight of main engine

KG

1500

heater weight

KG

560

Note: as the company's equipment is constantly updated, the specific parameters shall be subject to the equipment!
